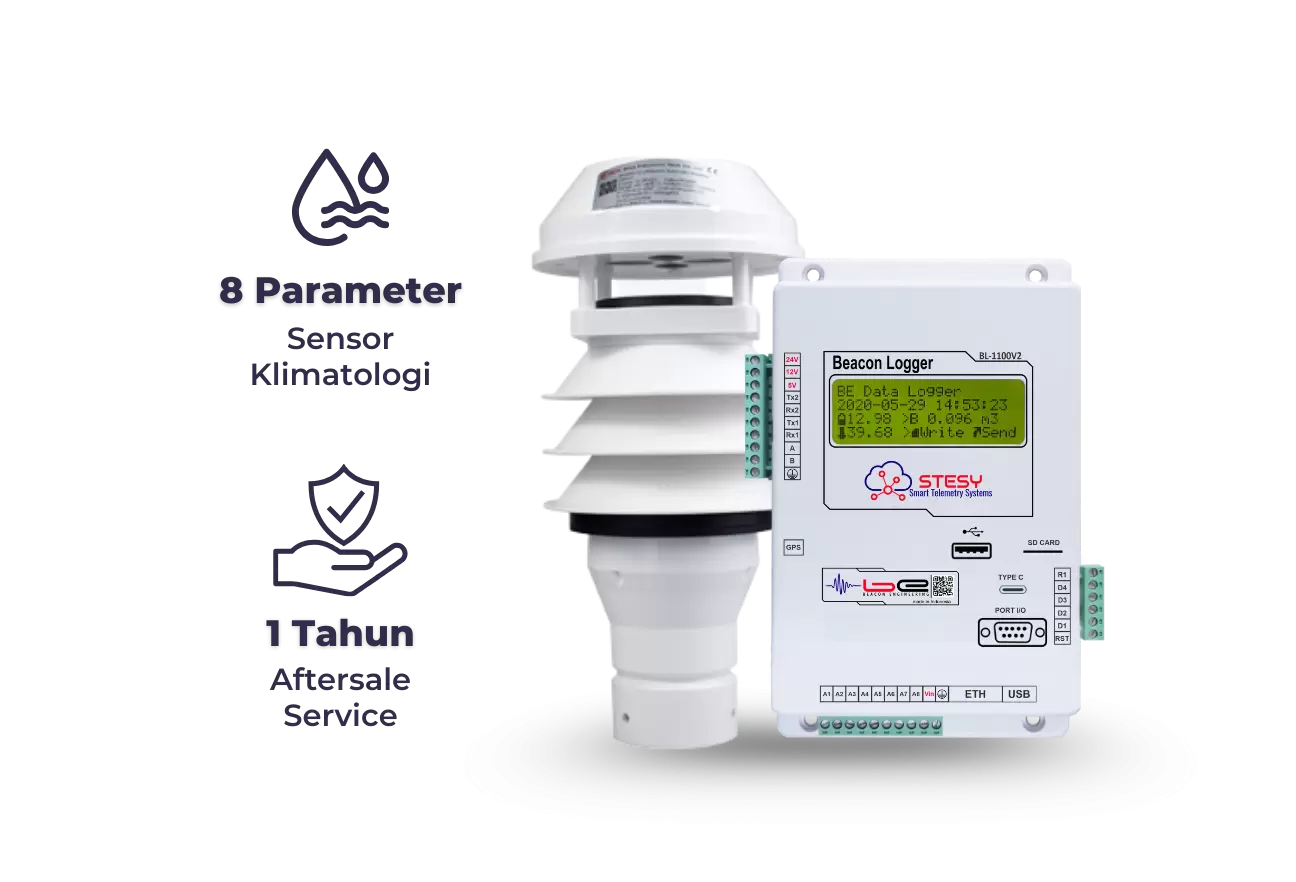

BE WR-1000-WS80
Pantau 8 Parameter Cuaca Lewat Satu Perangkat Telemetri
AWR tipe ini mampu mengukur 8 parameter cuaca sekaligus dengan satu sistem terintegrasi. Perangkat ini tahan segala cuaca dengan rating IP65, kokoh untuk pemasangan outdoor, dan siap mendukung sistem monitoring bendungan dan irigasi dengan performa tinggi.
Solusi tepat pemasangan di wilayah:
.png)
Bendungan

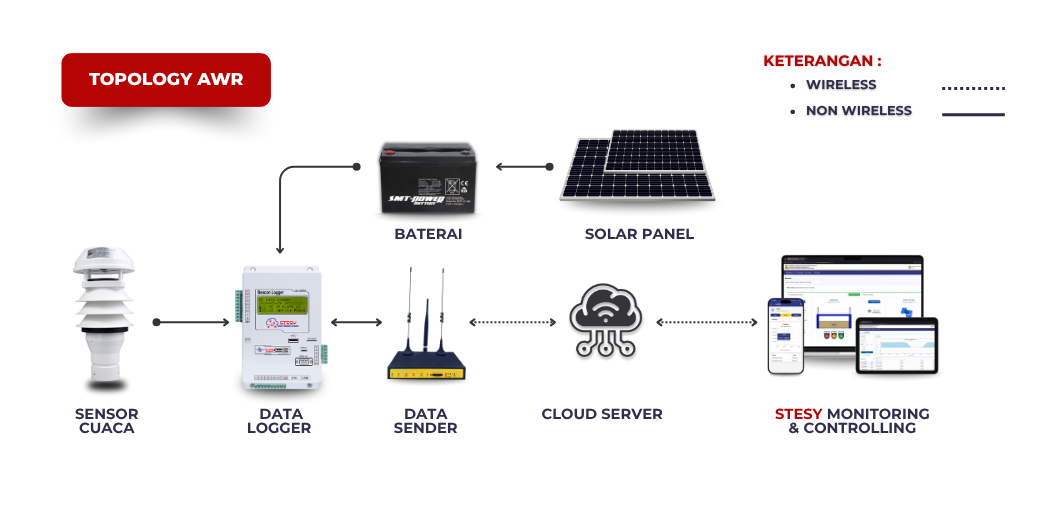

Bagaimana topologi perangkat WR seri BE WR-1000-WS80?
Multi-Parameter Weather Monitoring
Mendukung pengukuran parameter cuaca yang meliputi:
- Suhu
- Kelembaban
- Tekanan udara
- Curah hujan,
- Kecepatan angin
- Arah angin
- Radiasi
- Indeks UV
Konektivitas Fleksibel - Akses Data Mudah
Didukung dengan Data logger BL-1100 untuk pengambilan dan distribusi data secara efisien:
- Koneksi Lengkap – 4G, LAN, Wi-Fi, RS232, RS485, Modbus
- Output Data Universal – Format 4–20 mA, ASCII, CSV (Excel), cocok untuk integrasi ke sistem SCADA
- Memori Besar – SD Card hingga 16 GB
- Akses Lokal via Wi-Fi – Ambil data lansung tanpa internet
Daya Tahan Tinggi di Lapangan
Dirancang untuk bertahan di medan ekstrem dan kondisi lingkungan yang berat:
- Beroperasi di suhu ekstrem (-40°C hingga 70°C)
- Tahan cuaca dan lingkungan lembap
- Cocok untuk pemasangan jangka panjang di area terbuka
Ramah Energi dan Daya Tahan Lama
Mendukung operasional jangka panjang dengan keunggulan:
- Ditenagai oleh 2 panel surya total 500 WP — optimal untuk area terpencil
- Baterai deep cycle 12V/200Ah untuk suplai daya stabil jangka panjang
- Efisiensi panel hingga 15.3%, cocok untuk iklim tropis
BL Logger 1100
| Connectivity & Communication | |
|---|---|
| Internet Connection |
4G Wireless Router, LAN ports, Wi-Fi transmission channel |
| Communication Ports |
2x Serial Data RS232, 1x Modbus RS485, 1x USB Port, 1x Ethernet Port (TCP/IP), 1x DB9 Serial Port, 1x Type-C Port, Dual Mode Bluetooth (Classic and BLE) |
| Data Download |
Supports local Wi-Fi connection |
| Positioning System |
Integrated GPS Module for location tracking |
| Processing & Memory | |
| Processor |
SRAM 192 KB |
| Processor |
STM32F407xx (Arm Cortex 32-bit) |
| Clock Speed |
Up to 168 MHz |
| Input & Ouput | |
| Analog Input |
8 Channels |
| Digital I/O |
4 |
| ADC Resolution |
16-bit |
| Support Multisensor |
Yes |
| Power Supply & Regulation | |
| Operating Input Voltage |
10 - 24 VDC |
| Built-in DC Regulator Output |
5VDC, 12VDC, and 24VDC (for various sensor power supply) |
| Environmental & Durability | |
| Operating Temperature |
-40 to +85°C |
| Enclosure Material |
Flame-resistant ABS |
| Dimension |
125 x 44 x 205.6 mm |
| Display & Data Handling | |
| Display |
20 x 4 character LCD with green LED backlight |
| Data Format |
Excel (CSV File) |

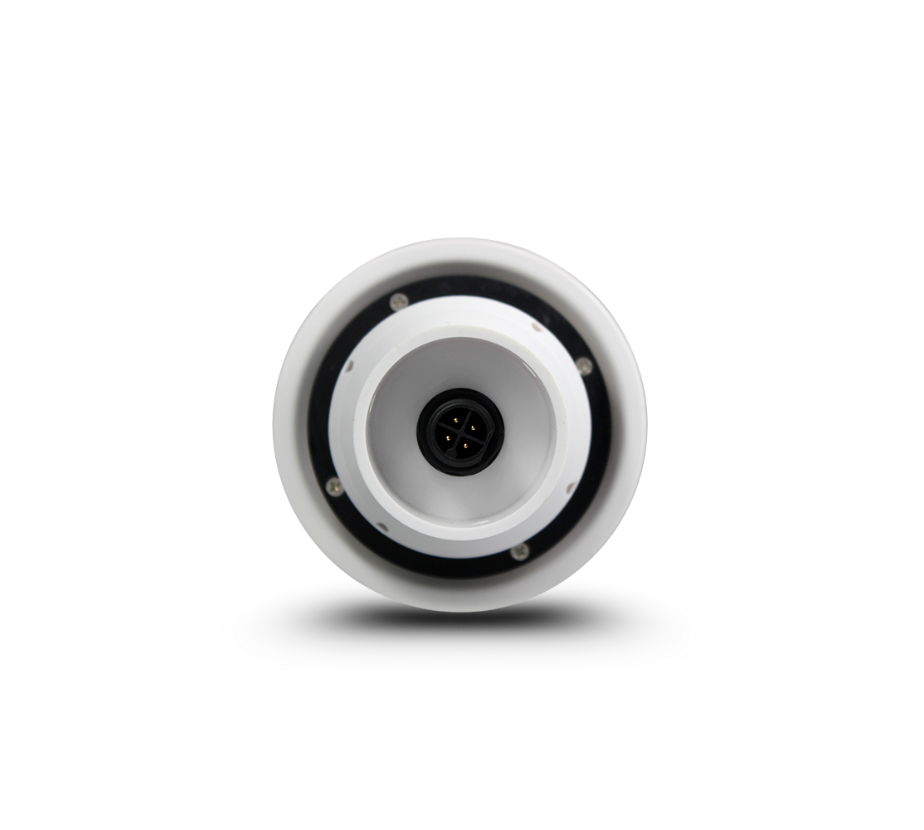

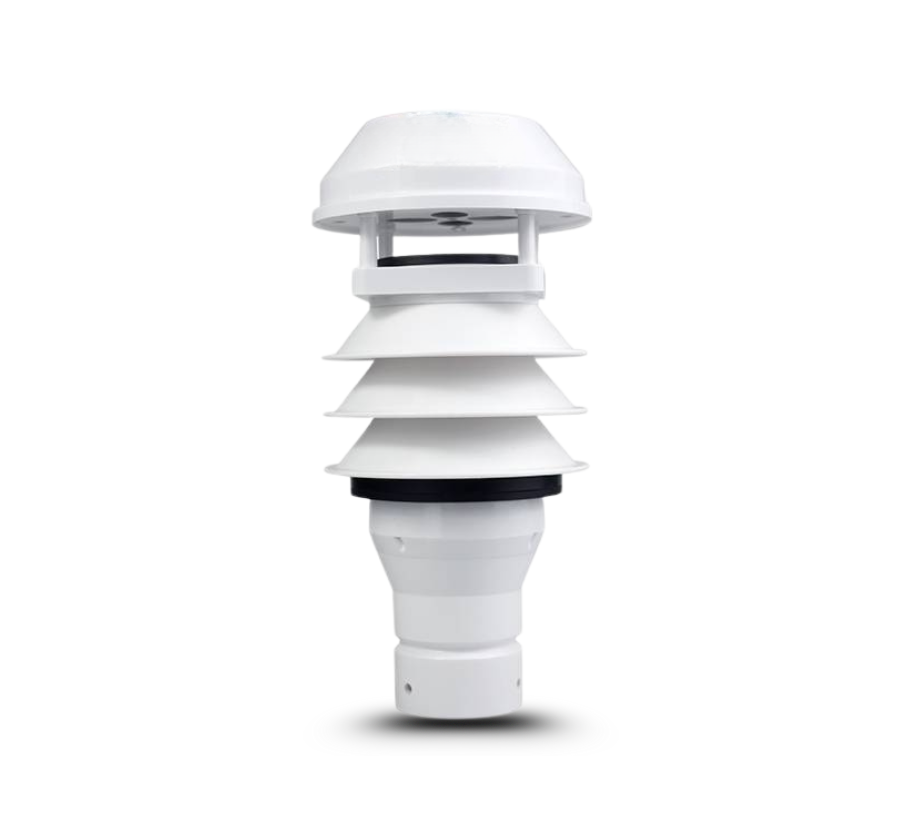

Weather Sensor 1000-WS80
| Wind Speed & Direction Measurement | |
|---|---|
| Range Speed |
|
| Range Direction |
0–360° |
| Accuracy |
±(0.3 + 0.03V) m/s (speed) & ±3° (direction) |
| Acquisition Cycle |
3s |
| Starting Wind Speed |
0.5 m/s |
| Limited Wind Speed |
75 m/s |
| Illuminance Measurement | |
| Range |
0–2000 lux, 0–20 klux, 0–200 klux optional |
| Spectral Range |
380–780 nm |
| Supply |
5VDC, 12–24VDC |
| Output |
4–20 mA, 0–5V, 0–10V |
| Accuracy |
< ±5% FS (analog output) |
| Response Time |
1s |
| Temperature Effect |
± 0.2% / °C |
| Repeatability |
< 1% FS |
| Temperature, Humadity, & Pressure Measurement | |
| Range Humadity |
0–100%RH (Resolution 0.5%RH, Accuracy ±3%RH) |
| Range Pressure |
10–110kPa (Resolution 0.1 hPa, Accuracy ±1hPa) |
| Storage |
10–60℃ @ 20%–90%RH |
| Rainfall Measurement | |
| Collector Dimension |
Diameter: φ200mm, Height: 271mm |
| Rainfall Intensity |
4mm/min |
| Accuracy (2mm/min) |
±4% |
| Resolution |
0.2 mm |
| Solar Radiation Measurement | |
| Spectral range |
300-3200 nm |
| Supply |
5V,12-24VDC |
| Range |
0-2000W/m² |
| Output |
0-20mV; 0-5V; 4-20mA |
| Sensitivity |
7-14μV·W⁻¹·m⁻² |
| Internal resistance |
350Ω |
| Non-linearity |
±2% |
| Measuring angle |
2π solid angle |
| Response time |
≤20s (99%) |
| Zero drift (temperature drift: 5k/h) |
±5W/m² |
| Cosine correction |
≤±7% (Solar elevation angle=10°) |
| Temperature effect |
±2% (-10°C~+40°C) |
| Operating temperature |
-40°C~+80°C |
