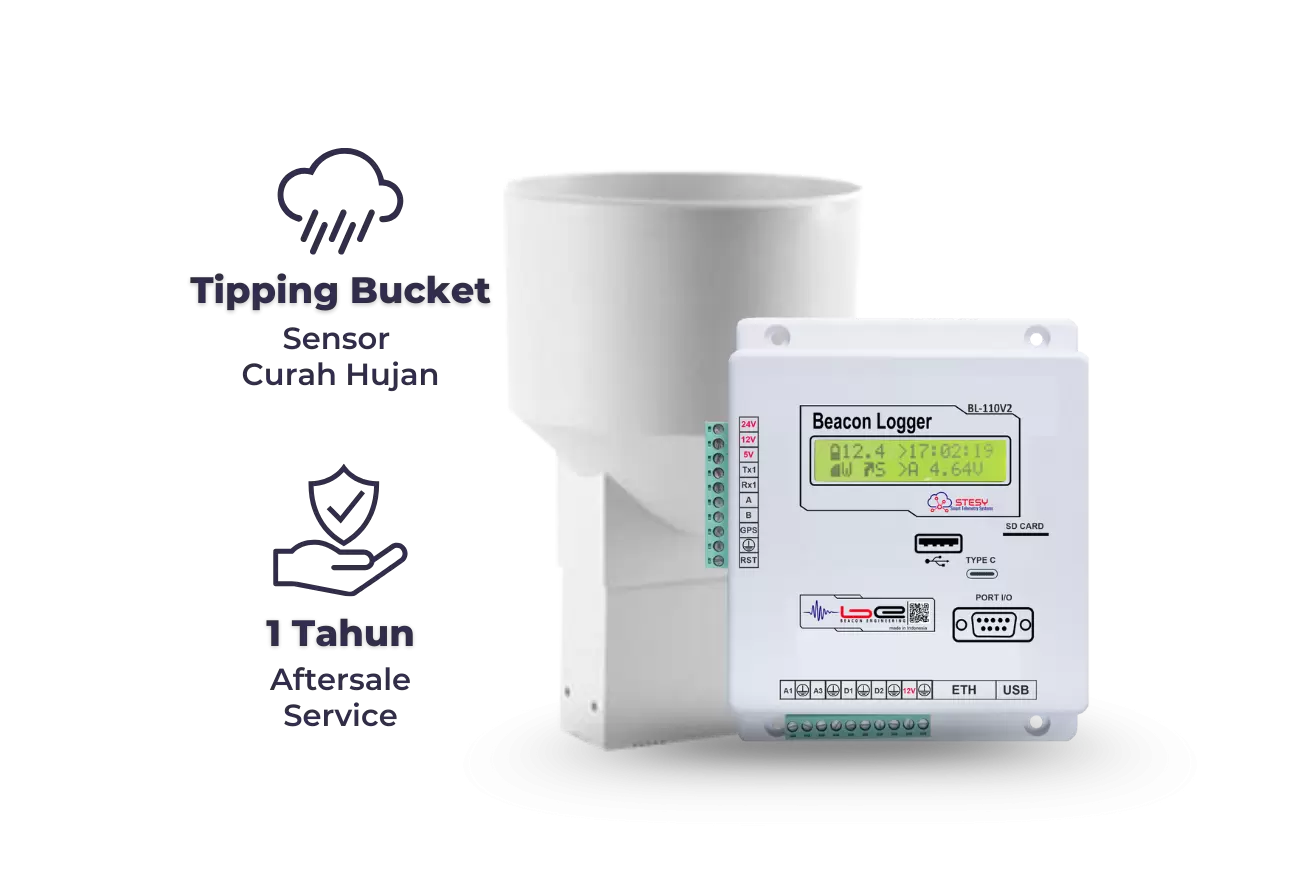

BE RR-100-TB02
Solusi Akurat Pantau Curah Hujan Kapan Saja Dimana Saja
ARR tipe ini dapat pencatat curah hujan otomatis dengan basis sensor Magnetic Hall Effect yang dirancang untuk memberikan data presisi tinggi dengan resolusi 0.2 mm dan akurasi ±2%. Menggunakan sistem self-emptying tipping bucket, tipe ini minim perawatan dan siap digunakan dalam berbagai kondisi cuaca ekstrem.
Solusi tepat pemasangan di wilayah:
.png)
Bendungan

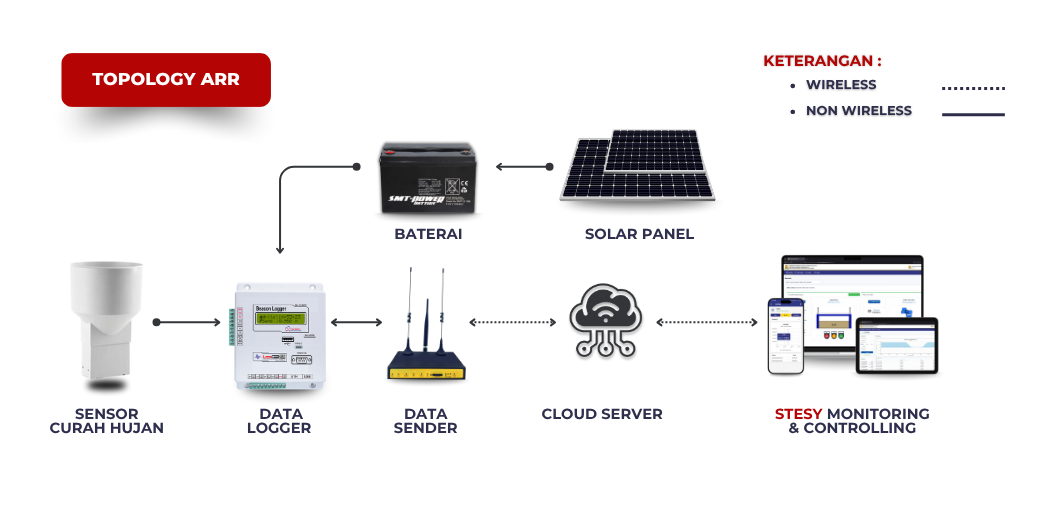

Bagaimana topologi perangkat RR seri BE RR-100-TB02?
BL Logger 110
| Connectivity & Communication | |
|---|---|
| Internet Connection |
4G Wireless Router, LAN ports, Wi-Fi transmission channel |
| Communication Ports |
1x Serial Data RS232, 1x Modbus RS485, 1x USB Port, 1x Ethernet Port (TCP/IP), 1x DB9 Serial Port, 1x Type-C Port, Dual Mode Bluetooth (Classic and BLE) |
| Data Download |
Supports local Wi-Fi connection |
| Positioning System |
Integrated GPS Module for location tracking |
| Processing & Memory | |
| Processor |
STM32F407xx (Arm Cortex 32-bit) |
| Clock Speed |
Up to 168 MHz |
| Memory |
SRAM 192 KB |
| Input & Ouput | |
| Digital I/O |
2 |
| Analog Input |
2 Channels |
| ADC Resolution |
16-bit |
| Support Multisensor |
Not recommended |
| Power Supply & Regulation | |
| Operating Input Voltage |
10 - 24 VDC |
| Built-in DC Regulator Output |
5VDC, 12VDC, and 24VDC (for various sensor power supply) |
| Environmental & Durability | |
| Operating Temperature |
-40 to +85°C |
| Enclosure Material |
Flame-resistant ABS |
| Dimension |
125.6 x 45 x 155.6 mm |
| Display & Data Handling | |
| Display |
16x2 character LCD with green LED backlight |
| Data Format |
Excel (CSV File) |

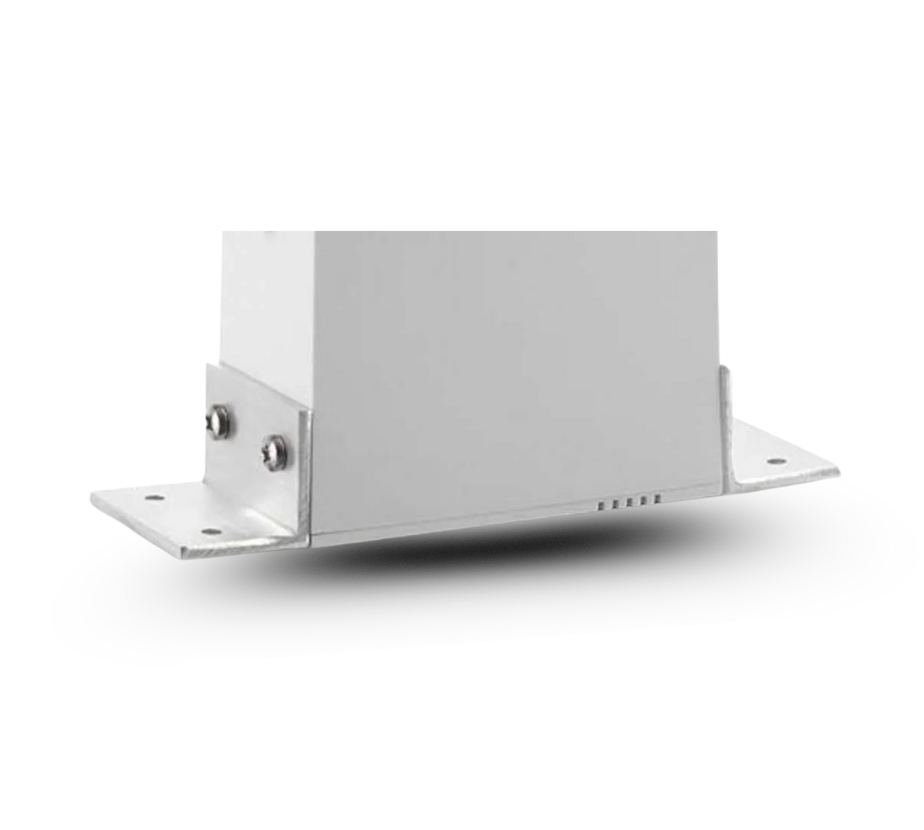

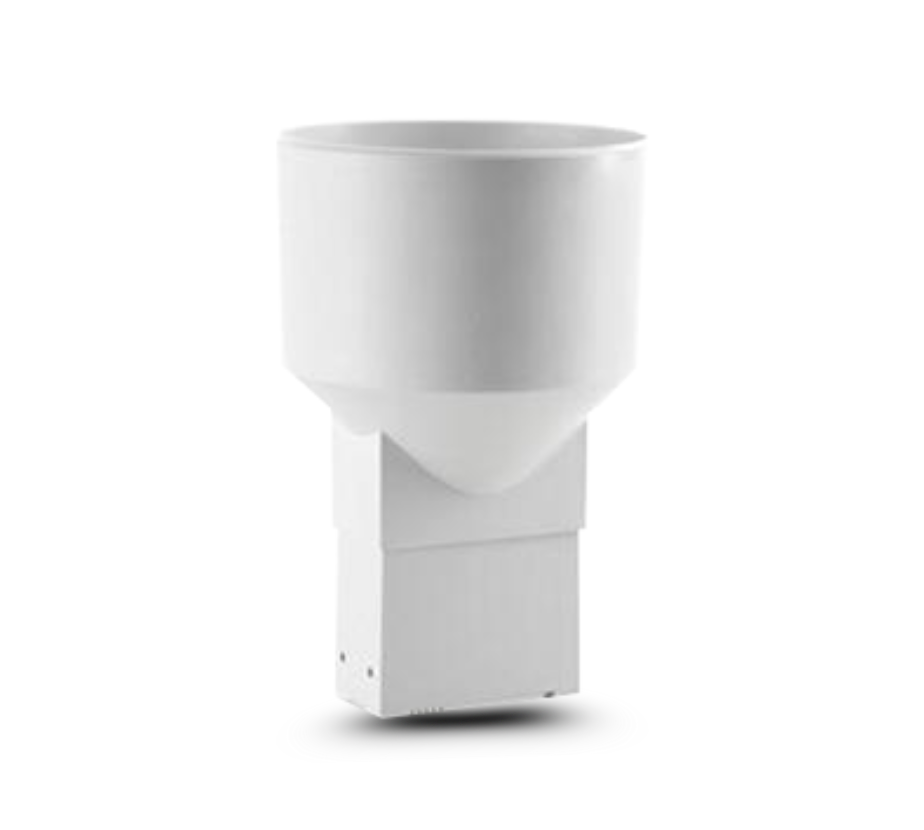

Rain Sensor TB02
| Measurement and Performance | |
|---|---|
| Data Resolution |
0.2 mm |
| Sensor type |
Magnetic Hall Effect sensor |
| Measurement Type |
Self-emptying tipping bucket |
| Accuracy |
±2% |
| Environmental & Durability | |
| Bucket Material |
POM (Polyoxymethylene), anti-stick, easy water release |
| Outer Shell Material |
Styrosun, smooth surface, easy to clean |
| Features |
High-quality plastics, resistant to dust & dirt |
